ADG400

ADG400

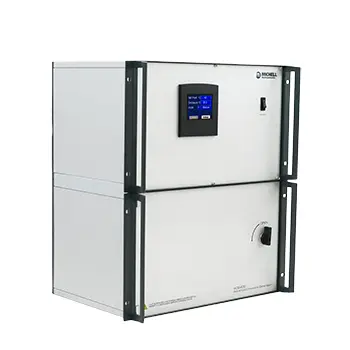

Advanced Dew-Point Generator:

The ADG400 is designed for use as part of a hygrometry calibration system. It is capable of repeatable generation of dew points across a range of -80 °C…+20 °C, when used in conjunction with the Michell Instruments PSD2 pressure swing dryer.
The generation technique is based on the volumetric mixing of dry and wet gases. It gives the fastest response when changing between set points in comparison to other dew-point generator technologies (such as two-temperature, two-pressure or a combination of both).

Highlights

• Full-color touch-screen HMI
• 11-point factory programmed dew-point setpoint table from -80 °C to +20 °C at 10 °C intervals
• 13-point user programmable dew-point setpoint table
• 3 programmable 13-point automatic calibration profiles with customizable timings
• Change set points using serial commands via built-in USB port
• Remote Access mode allows HMI to be operated using a connected PC
• Temperature-controlled enclosure to ensure output stability and repeatability
